T-node M

Description

Multipurpose Positioning, Navigation and Timing monitoring station

• Multi-purpose equipment that allows monitoring and verification of Positioning, Navigation, and Timing (PNT) equipment and systems in real time.
• European Space Agency tested technology.
• Timing accuracy evaluated against best atomic clocks in National Metrology Laboratory (e.g., National Standard Authority of Ireland).
• Anti-spoofing and anti-jamming functionality with possibility to detect and/or reject false signals.
• Best in class accuracy allowing to monitor any time & sync equipment (ePRTC, PRTC-A/B, NTP/PTP servers) with accuracy below 10 ns.
• Configurable monitoring and alert system integrated in Grafana.
• Simple installation and integration.



You can choose from multiple options:

• single, or dual setup, where dual setup adds a complete redundancy and removes single point of failure
• different GNSS receiver manufacturer (u-blox’s ZED-F9T or Septentrio’s mosaic-T)
• Ethernet, or ethernet plus LTE mobile broadband backup



Integrity and Security

• Real-time detection and rejection of false Global Navigation Satellite System (GNSS) signals (anti-spoofing).
• Protecting all constellations (GPS, Galileo, BeiDou, GLONASS) and all signal bands (L1/E1, L2/E5b, L5/E5a).
• Anti-jamming – maintains the best performance under single band jamming events.



Immunity to GNSS Anomalies

• System design can deal with GNSS failures on a system or satellite level ensuring uninterrupted operation for mission-critical applications.
• Able to avoid GNSS system anomalies, such as GPS UTC anomaly from January 2016.
• Early detection of system failures, such as the Galileo week-long outage from 2019.



Regulatory compliance

• Provision of real-time traceability to UTC(k) to facilitate relevant compliance with regulation: MiFID II, NIS2 Directive, DORA, FINRA.



Operational Resiliency

• Two identical and completely independent units (1U rack only).
• 2x antenna, 2x GNSS receiver (all constellations, all signals), 2x CPU, 2x Power source
• Passive cooling!



Security by Design

• SSH access through local management port (USB interface) or SSH remotely over Ethernet port.
• All communication encrypted with TLS v1.3.
• Post-quantum cryptography compliant.

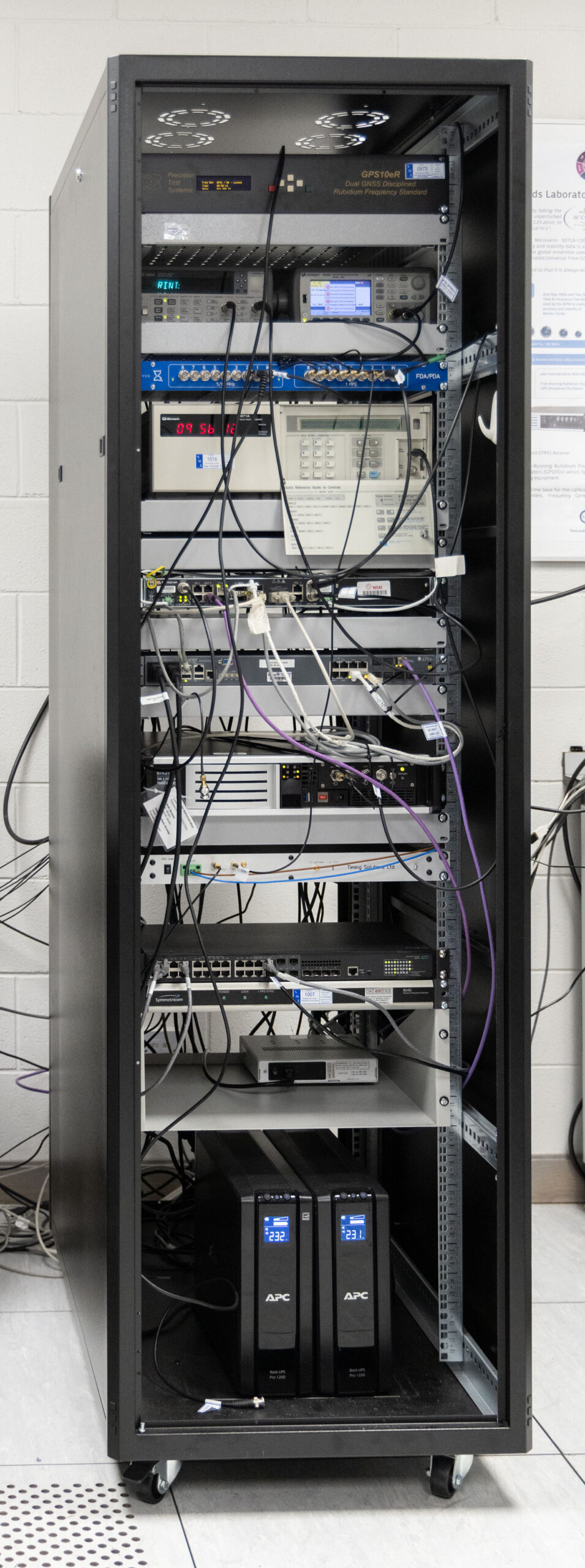

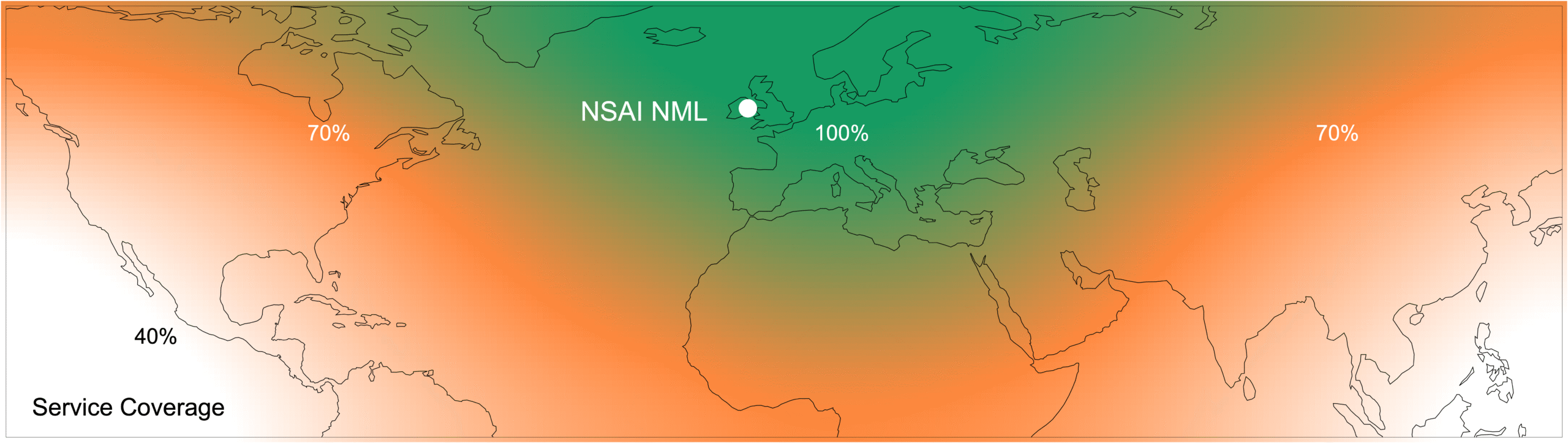

Reference System Resiliency

• At least two identical and completely independent systems.
• Power source backed-up by UPS and diesel generator.
• 4 different internet connections (three independent optical fibers and mobile LTE backup).
• Reference data generation setup replicated in different EU countries (IE, CZ, BiH, NL)

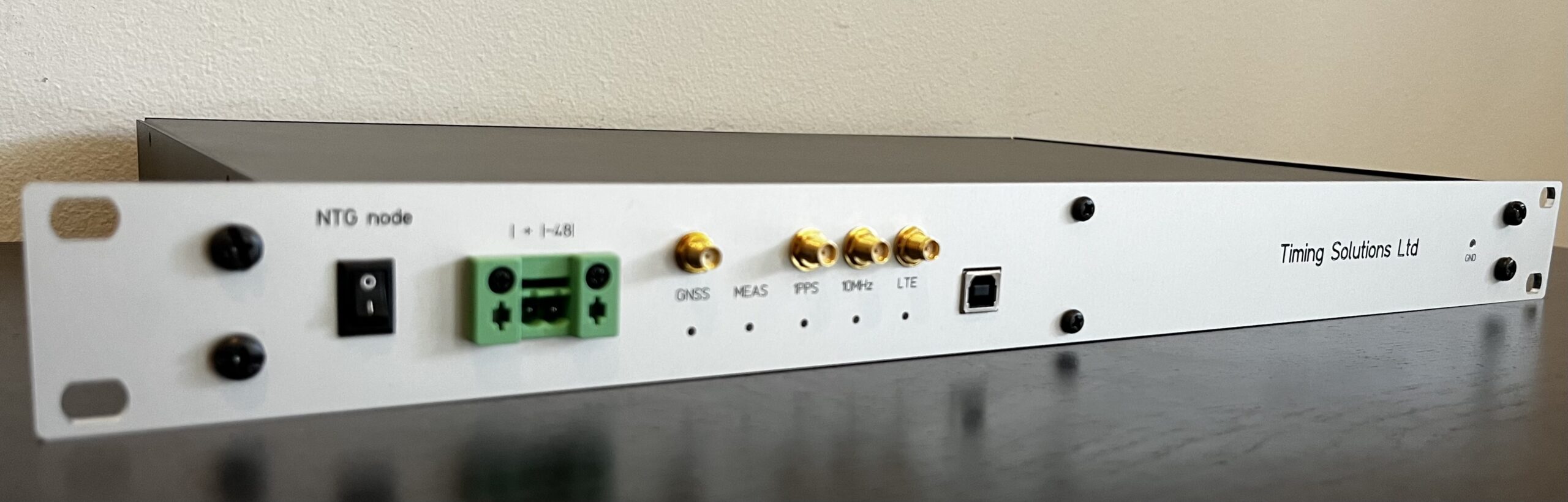

I/O interfaces

• 10MHz input, SMA, 50Ω termination, -10dBm to +14dBm, max 3.2V pk-pk
• 1PPS input, SMA, 50Ω termination, 3.3V, 5V tolerant
• GNSS Antenna input, SMA, 50Ω impedance, DC biased, 5V, 150mA
• LTE antenna input (optional), SMA, 50Ω impedance
• 1PPS/10MHz/2.048MHz (optional), programmable output, SMA



Ethernet interface

• Hardware-based timestamping
• 100BaseT (copper) port
• 1000BaseT/X (copper/fiber) port optional



GNSS specification

• GPS: L1C/A, L1PY, L2C, L2PY, L5
• GLONASS: L1CA, L2CA, L3 CDMA
• BeiDou: B1I, B1C, B2a, B2b, B2I, B3
• Galileo: E1, E5a, E5b, E5 AltBoc, E6
• QZSS: L1C/A, L1 C/B, L2C, L5
• NavIC: L5
• SBAS: EGNOS, WAAS, GAGAN, MSAS



Holdover performance (optional)

• Rb clock <200ns within 12 hours (temperature stability dependent)



Regulatory and standards compliance

• IEC 62368-1
• EN 55032, EN 55035
• ETSI EN 300 386
• IEEE 1613
• IEC 61850-3
• RoHS compliance
• CE



Power consumption

• Maximum 6W



Mechanical Specification

• 1U
• Small form factor – 45×68×93m (drop us an email)
• PCIe half height half length – 68.90×167.65×20.32mm (drop us an email)



Environmental

• Operating temperature: -25 to +65°C
• Storage temperature: -40 to +70°C
• Humidity: 5 to 95% (non-condensing)
